| Model |
BPC-7430-J1A1 |
BPC-7430-J2A1 |
BPC-7430-J3A1 |
| Processor System |
CPU |
Intel® Celeron® Processor J1900 |
| Frequency |
2.0 GHz / 2.42 GHz (Boost), 4 Cores / 4 Threads |
| L2 Cache |
2 MB |
| System Chipset |
N/A |
| BIOS |
AMI UEFI BIOS at 64 Mb |
| Memory |
Technology |
DDR3L 1333 MHz |
| Max. Capacity |
8 GB |
| Socket |
1, 204-pin SO-DIMM |
| Display |
Chipset |
Intel Gen7 graphic engine |
| Graphics Engine |
Intel® HD Graphics with Graphics Base Frequency 688 MHz |
| VGA |
UXGA 1600 x 1200 at 60 Hz |
| HDMI / DP |
DP / HDMI (Auto Detect), 1080P at 60 Hz |
| Dual Display |
DP / HDMI + VGA |
| I/O Interface |
USB |
4 USB 3.0 (Hub), 2 Internal USB 2.0 (for Keypro) |
| Serial Port |
4 COM ports (2 RS-232, 2 RS-232/422/485) |
| Isolated Serial Port |
N/A |
4 isolated COM ports
(2 RS-232, 2 RS-232/422/485)
with 2kv High voltage Isolation |
| Isolated Digital I/O |
N/A |
8 in / 8 out (isolated)
with 2kv High voltage Isolation |

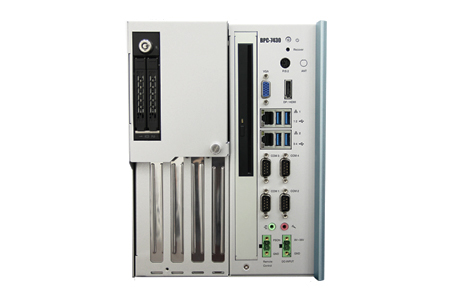

| DVD Drive (Option) |
1 Slim 12.7mm DVD Optical Drive |
N/A |
| Ethernet |
Controller |
Dual GbE, 10/100/1000 Mbps (Intel i210) |
| Audio |
Chipset |
Realtek ALC886 HD Audio |
| Connectors |
Line out, Mic in |
| Expansion |
Mini PCIe |
1 mini PCIe, signal: USB interface only (with SIM card) |
| PCI/PCIe slot |
4 PCI expansion slots |
3 PCI, 1 PCIe(x1) expansion slots |
| Storage |
mSATA |
1 (Swappable) |
| SATAII |
1, 2.5” HDD/SSD bay |
| SATA RAID (Option) |
2, 2.5” HDD/SSD bay
(Support RAID 0 & RAID 1) |
N/A |
| Power |
Power Type |
AT / ATX |
| Power Supply Voltage |
9-36 V DC-input (2 pin Terminal Block) |
| Remote Power Connector |
2-pin Terminal Block (9~36 V, GND) |
| Battery |
Lithium 3 V / 210 mAH |
| Power Consumption
(Typical) |
27.6W @12V DC-input ( w/o PCI cards) |
| Power Consumption
(Max) |
33W @ 12V DC-input (w/o PCI cards) |
| Others |
Recovery Button |
System Recovery button |
| Remote Power Connector |
2-pin Terminal Block (PSON, GND) |
| Environment |
Operational |
-20~60° C (-4~140° F) (Operational humidity: 60° C @ 95% RH Non-Condensing) |
| Non-Operational |
-40~85° C and 60° C @ 95% RH Non-condensing |
| Vibration |
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x,y,z 3 axes. |
| Shock |
20 G, IEC 60068-2-27, half sine, 11 ms duration |
| Certificate |
EMC |
CE, FCC Class A |
| General |
Dimensions
(W x H x D) |
194 x 257 x 240 mm (7.64” x 10.12” x 9.45”) |
| Weight |
5.4 kg (11.88 Ib) |
| Operating System |
Windows 7/8, WS7E/P, WES8, Linux kernel 2.6.x or above for Fedora, Yocto |
Factory Automation
Machine Automation
Machine Vision
Medical HMI
Self Service
Digital Signage
