Fanless Embedded Box with 3rd Gen. Intel® Core™ i7 Dual-Core Processor & Multiple I/O

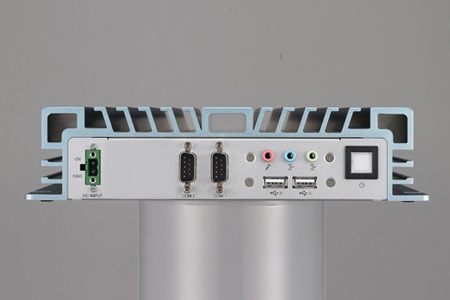

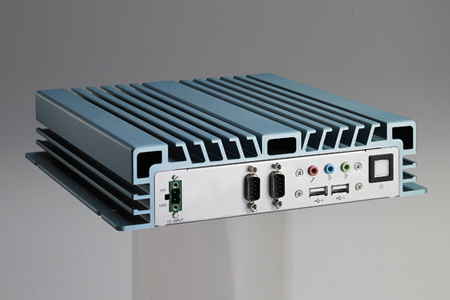

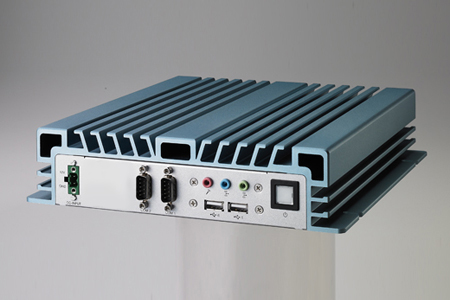

The BPC-5050 fanless Box PC is ideal for video/graphic and automation control applications. This fanless, embedded ultra-low power platform is designed with an Intel® Core i7™ processor which is the 3rd generation Intel® Core™ processor designed with triple-display support, and Dual-Core Technology speeds up to 2.5 GHz while maintaining the same low power consumption and powerful computing ability. The BPC-5050 has a highly reliable chassis with a thermally-enhanced ripple fin design offering great thermal performance (-20~60°C) while also integrating anti-vibration and shock resistance. The BPC-5050 is the ideal fanless Box PC controller for use with digital signage, surveillance, image processing, or machine automation industries.

Features

Intel® Core™ i7 processor up to 2.5 GHz (4M L3 Cache, i7 2.5 GHz)
DDR3 1333 / 1600 MHz SO-DIMM up to 8 GB
2 GbE, HD Audio, 2 USB 3.0, 4 USB 2.0 , 2 COM, 2 mini PCIe (1 half-size, 1 full-size), VGA & HDMI
Supports 2.5” SATA HDD & mSATA (full-size mini PCIe)
-20~60° C operating temperature

Applications

Embedded Digital Signage Control Systems
Factory Automation Applications
Image Processing (e.g. AOI)
Machine Automation
Transportation Management

Product Features

Model		BPC-5050
Processor System	CPU	Intel Core™ i7 3555LE 2.5 GHz
	L3 Cache	4 MB (i7 3555LE)
	System Chipset	Intel QM77
	BIOS	AMI EFI 64Mbit
Memory	Technology	DDR3 1333/1600 MHz
	Max. Capacity	8GB
	Socket	1 x 204-pin SO-DIMM
Display	Chipset	Intel QM77
	Graphic Engine	DirectX 11 and OpenGL3.1 support H/W Decode/Acceleration: H.264/ VC1/ MPEG2
	VGA	Up to 2048 x 1536 @ 75 Hz
	HDMI	1920 x 1200, HDMI v1.4 up to 1080p
	Dual Display	VGA + HDMI
I/O Interface	USB	2 x USB 3.0, 4 x USB 2.0
	Serial Port	2 x COM, 1 x RS-232, 1 x RD-232/422/485 (RD-485 supports autoflow control)
	GPIO	8-bit programmable GPIO (optional)
Ethernet	Controller	Dual GbE, 10/100/1000 Mbps (Intel 82579LM / 82583V)
Audio	Chipset	Realtek ALC892, High Definition Audio (HD)
Audio	Connector	Line in, Line out, Mic in
Storage	mSATA	1 x mSATA on full size mini PCIe
Storage	SATA	1 x SATA III (Max. Data Transfer Rate 600 MB/s)
Expansion	miniPCIe	1 x full-size mini PCIe, 1 x half-size mini PCIe
Power	Power Type	AT / ATX
	Power Supply Voltage	Single 12V input
	Power Consumption (Typical)	2.356A @ 12V, 28.27W (2.5 GHz)
	Power Consumption (Max)	2.896A @ 12V, 34.75W (2.5 GHz)
	Power Adaptor	AC-to-DC, 12 V @ 5 A, 60 W
Environment	Operational	-20~60° C (-4~140° F) with I-grade SSD, 0~40° C (32~104° F) w/ 2.5” HDD (Operational humidity: 40° C @ 95% RH Non-condensing)
	Non-operational	-40~85° C @ 95% RH Non-condensing
	Vibration	5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD only) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w /2.5” HDD)
	Shock	50G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only) 20G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Safety	EMC	CE, FCC Class A
Physical Characteristics	Dimensions ( WxHxD)	238 x 55 x 245 mm (9.37” x 2.16” x 9.64”)
Physical Characteristics	Weight	3.5 kg (7.7 lb)

Packing List

Description

1 x BPC-5050-A1E

1 x Driver CD

1 x Startup Manual

Ordering Information

Part No.	Description
BPC-5050-U5A1E	BPC-5050-U5A1E Intel® Core i7-3555LE Dual-Core 2.5 GHz Processor, embedded w/ HDMI, VGA, 2 x USB 3.0, 4 x USB 2.0, 2 x COM, 2 x GbE

Optional Items

Part No.	Description
ACS-PS-60W	AC-to-DC 12 V @ 5 A, 60 W power adapter, 0~40° C for office & home use
ACS-PS-US	Power cable: 3-pin, 180 cm (USA)
ACS-PS-EU	Power cable: 3-pin, 180 cm (Euro)
ACS-PS-CN	Power cable: 3-pin, 180 cm (China)

Datasheet

Type	Description	File Name	File Size
PDF	Datasheet of BPC-5050 (English)	DS_Arestech_BPC-5050.pdf	1.5 MB
PDF	Datasheet of BPC-5050 (Traditional Chinese)	DS_Arestech_BPC-5050_ch.pdf	1.6 MB
PDF	Datasheet of BPC-5050 (Simplified Chinese)	DS_Arestech_BPC-5050_cn.pdf	1.7 MB
