BPC-7260

Fanless Embedded Box PC with 4th/5th Generation Intel® Core™ i Processor and PCI/PCIe Expansion

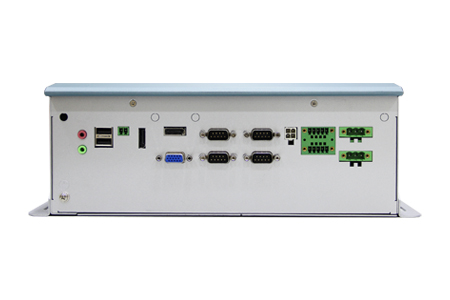

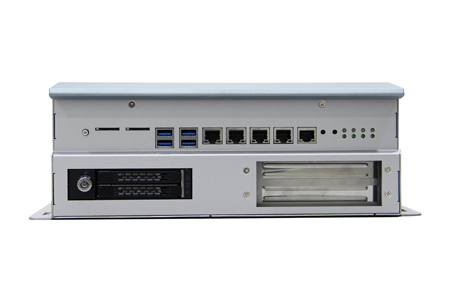

Arestech's BPC-7260 is an fanless expandable embedded Box PC with two PCIe slots. Featuring a high performance 4th/5th Gen Intel® Core™ processor, the BPC-7260 is designed to meet a wide variety of application demands. An isolated digital I/O (8-bit) port and four COM ports provide normal speed control signals for a variety of industrial equipment utilizing terminal connections. Five LAN ports (four PoE and one GbE) and six USB ports provide high speed signal and data transmission for networked devices such as remote video cameras. The Intel® HD Graphics 4600 engine provides high resolution and smooth performance via three video outputs (VGA, DP, HDMI) suitable for multimedia displays and digital signage. By accepting two PCIe cards, the BPC-7260 becomes a flexible solution that can adapt to just about any user configuration. Three Mini PCIe expansion slots can accept 3G/WLAN modules to provide different types of wireless communication. Supporting up to four HDDs (two internal and two swappable), the BPC-7260 provides the largest possible storage capacity which is especially suited to video surveillance applications. The BPC-7260 also features a rugged design, 9-36 V DC power input, and can operate within a wide temperature range (-20~70° C) and high vibration environments making it an ideal choice for stable, long-term use.

Features

• Expandable Fanless Box PC, 4th/5th Gen Intel® Core™ i CPU
• 4 Power over Ethernet IEEE 802.3 at/af, Isolated Digital I/O Ports
• 4 HDD/SSD (RAID 0/1/5/10)
• 2 PCIe x4 Expansion Slots
• -20~70° C Operating Temperature, 9-36 V DC Input

Applications

• Embedded Control Systems
• Automatic Optical Inspection (AOI)
• Remote Video Surveillance
• Multimedia Display and Digital Signage
• Wireless Network Communication
