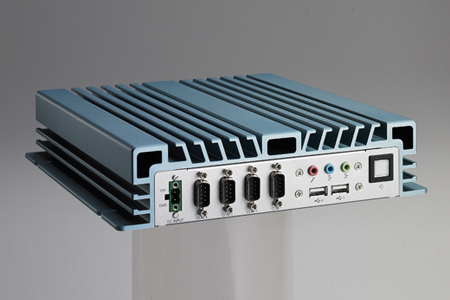

| Model |
BPC-5030 |
| Processor System |
CPU |
AMD G-Series T56N |
| Frequency |
1.65 GHz Dual-Core |
| L2 Cache |
1 MB |
| System Chipset |
AMD G-Series + A50M FCH |
| BIOS |
AMI EFI 32 Mbit |
| Memory |
Technology |
DDR3 1066 MHz |
| Max. Capacity |
4 GB |
| Socket |
1 x 204-pin SO-DIMM |
| Display |
Chipset |
AMD G-Series |
| Graphics Engine |
DirectX® 11 graphics with UVD 3.0 2D Acceleration, 3D Acceleration, Motion Video Acceleration, DVD, Blu-ray*Hardware decode (UVD 3):H.264, VC-1 & MPEG2 |
| VGA |
Up to 2560 x 1600 |
| HDMI |
1920 x 1080p at 60 Hz, 36 bpp, HDMI v1.3, using TMDS data encoding |
| Dual Display |
VGA+HDMI |
| I/O Interface |
USB |
6 x USB 2.0 |
| Serial Port |
4 x COM, 3 x RS-232, 1 x RS-232/422/485 (RS-485 supports auto-flow control) |
| GPIO |
8-bit programmable GPIO (optional) |
| Ethernet |
Controller |
GbE1: Realtek RTL8111E-VB-GR 10/100/1000 Mbp, GbE2: Realtek RTL8111E-VB-GR 10/100/1000 Mbp |
| Audio |
Chipset |
Realtek ALC892, High Definition Audio (HD), Line in, Line out, Mic in |
| Amplifier |
Optional via MIOe |
| Storage |
CFast |
1 |
| mSATA |
mSATA or full size Mini PCIe (default) selected by BIOS |
| SATA |
1 x SATA II (Max. Data Transfer Rate 300 MB/s) |
| Power |
Power Type |
Single 12V DC power input |
| Power Supply Voltage |
Single 12V input (±10%) |
| Power Consumption (Typical) |
0.606 A @ 12 V (10.5 W) |
| Power Consumption (Max) |
0.729 A @ 12 V (12.6 W) |
| Power management |
ACPI |
| battery |
Lithium 3 V / 210 mAH |
| Environment |
Operational |
-20~60° C (-4~140° F) (Operational humidity: 40° C @ 95% RH Non-condensing) |
| Storage |
-40~85° C and 60° C @ 95% RH Non-condensing |
| Vibration |
5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x,y,z 3 axes. (w/ cFast only) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x,y,z 3 axes. (w/ 2.5” HDD) |
| Shock |
50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ cFast only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD) |
| Certificate |
EMC |
CE, FCC Class A |
| Physical Characteristics |
Dimensions (L x W) |
238 x 55 x 245 mm (9.37” x 2.16” x 9.64”) |
| Weight |
3.0 kg (6.6 lb) |
|
