17" Fanless Multi-touch Waterproof Panel PC with Intel® Celeron® J1900 Processor and 2 PCI Slots

Arestech's PPC-S172 is an industrial grade 17" LED multi-touch waterproof Panel PC with two PCI expansion slots. The stainless steel front panel protects the PPC-S172 from weathering and oxidation. The exceptionally strong bond between the touch-panel and front panel gives the PPC-S172 an IP65 waterproof rating. The slim 3.5 mm front cover makes wall mounting easy. Designed with an Intel® Celeron® Bay Trail D J1900 2.0 GHz processor, the PPC-S172 delivers exceptional performance at low power. The two PCI slots enable integration of PCI cards resulting in a configurable application platform. Additionally, the PPC-S172's four COM ports and one DIO port can make factory automation control easier. The PPC-S172 is the best choice for use in CNC control panels, the food industry, and outdoor kiosk applications.

Features

17" SXGA LED Panel with Projected Capacitive Touch Display
Supports Two-finger Touch Control while Wearing Gloves
Intel® Celeron® J1900 2.0 GHz Processor
2 PCI Expansion Slot
Completely Flat Front Design
Stainless Steel IP65 Waterproof Front Cover
Panel and VESA Mounting

Applications

CNC Control Panel
Food Industry Management System
Animal Feed Production Facility
Outdoor Kiosk

Product Features

Model		PPC-S172P	PPC-S172R
Processor System	CPU	Intel® Celeron® Processor J1900
	Frequency	Quad-Core up to 2.0 GHz
	L2 Cache	2 MB
	System Chipset	N/A
	BIOS	UEFI
Memory	Technology	DDR3L 1333 MHz SDRAM
	Max. Capacity	8 GB
	Socket	1 (204-pin SO-DIMM)
Display	Panel Size	17” LED Panel
	Resolution	1280 x 1024 (SXGA)
	Viewing Angle	80 x 80 (H) x 60 x 80 (V)
	Brightness	350 (cd/m2)
	Color Support	16.7M
	Contrast Ratio	800:1
	Response Time	30 (msec)
	VGA	Up to 1920 x 1200
	HDMI	HDMI 1.4a up to 1920 x 1200
	Dual Display	LCD + VGA or LCD + HDMI
Touchscreen	Touchscreen Type	Projected Capacitive	5-Wire Resistive
	Surface Hardness	7	3
	Surface Hardness	-	10 millions times
	Transparency	90% (±3%)	80% (±3%)

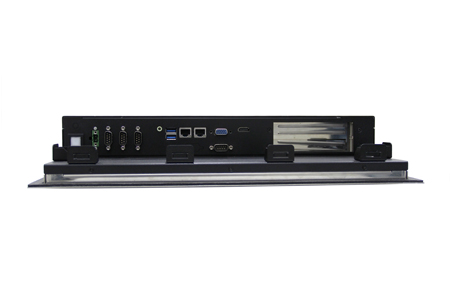

I/O Interface	USB	2 USB 2.0, 2 USB 3.0
	Serial Port	4 COM (3 RS-232, 1 RS-232/422/485)
	Digital I/O (Optional)	8-pin Digital I/O (DB-9 connector)
	Expansion	1 Mini PCIe (half-size), 2 PCI
Ethernet	Controller	Dual GbE, 10/100/1000 Mbps (Realtek RTL8111G-CG)
Audio	Chipset	Realtek ALC662 High Definition Audio (HD)
	Connector	Line out
Storage	SATA II	1 Internal 2.5” HDD/SSD
Power	Power Supply Voltage	9-36 V DC input (Phoenix Connector
	Power Adaptor	AC-to-DC, 12 V @ 5 A, 60 W
	Power Consumption (Typical)	2.38 A @ 12 V (28.56 W), not including PCI expansion card
	Power Consumption (Max)	3.63 A @ 12 V (43.64 W), not including PCI expansion card
	Battery	Lithium 3 V / 210 mAH
Environment	Operating Temperature	0~50° C (32~122° F) w/ 2.5” SSD
	Storage Temperature	-40~85° C (-40~185° F)
	Humidity	5~95% @ 40° C, non-condensing
	Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
	Certification	CE, FCC Class A
General	Front Panel Waterproof	IP65, stainless steel front cover
	Dimensions (L x W x H)	430 x 362 x 76.2 mm (12.58” x 9.98” x 2.52”)
	Weight	7 kg (15.4 lb)
	Operating System	Windows 7/8, WS7E/P, WES8

Packing List

Description

1 x PPC-S172

1 x Driver CD

1 x Power Adaptor (AC-to-DC, 12 V @ 5 A, 60 W)

14 x Panel Mounting Screws

Ordering Information

S

Part No.	Description
PPC-S172P-1A1	17” Fanless Multi-touch Panel PC with 2 PCI Expansion ,IP65 Protection, and Intel® Celeron® J1900 2.0 GHz Processor
PPC-S172R-1A1	17” Fanless Resistive Touch Panel PC with 2 PCI Expansion ,IP65 Protection, and Intel® Celeron® J1900 2.0 GHz Processor

Optional Items

Part No.	Description
ACS-PS-US	Power cable: 3-pin, 180 cm, USA Type
ACS-PS-EU	Power cable: 3-pin, 180 cm, Euro Type
ACS-PS-CN	Power cable: 3-pin, 180 cm, China Type
ACS-100-STD	VESA Table Stand

Datasheet

Type	Description	File Name	File Size
PDF	Datasheet of PPC-S172 (English)	DS_Arestech_PPC-S172.pdf	1.1 MB
PDF	Datasheet of PPC-S172 (Traditional Chinese)	DS_Arestech_PPC-S172_ch.pdf	1.2 MB
PDF	Datasheet of PPC-S172 (Simplified Chinese)	DS_Arestech_PPC-S172_cn.pdf	1.3 MB
