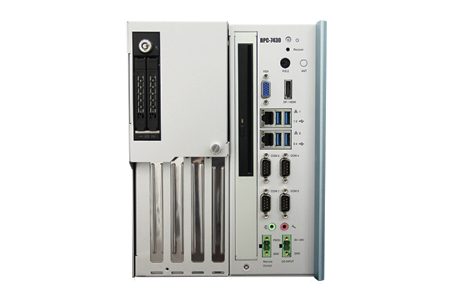

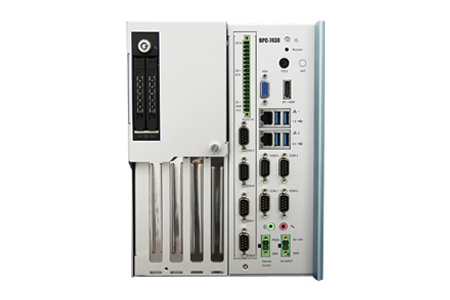

Fanless Embedded Box PC with Intel® Celeron® Processor J1900 and 4 Slot PCI Expansion

Arestech's BPC-7430 is an exceptional fanless expandable embedded computer with configurable PCI slots. It is designed to provide a reliable platform for a wide variety of applications by accepting standard PCI cards. The BPC-7430 can operate in -20 to 60° C temperatures and its cableless structure provides additional durability for long-term usage. Featuring an Intel® Celeron® Bay Trail D J1900 2.0 GHz processor, the BPC-7430 delivers exceptional performance at low power. The PCI slots enable integration of off-the-shelf PCI cards for a configurable application platform. Generic I/O interfaces, such as Gigabit Ethernet, COM, and USB are also provided for connecting devices. Arestech's BPC-7430 is the perfect combination of configurability, reliability, durability, and compactness. Optional, isolated COM ports and digital I/O connectors are available for even greater flexibility. With the BPC-7430, creating your rugged application system has never been easier.

Features

One-touch Recover Button
Remote Power Switch
2 GbE, 4 USB 3.0, 4 COM, 1 VGA, 1 HDMI / DP
2 Internal USB 2.0 for Software Encryption Dongle
2 Swapable HDD, RAID 0 and RAID 1
4 PCI Expansion Slots
9~36 V DC Power Input
-20~60° C Operating Temperature

Applications

Embedded Control Systems
Automatic Optical Inspection (AOI)
Warehouse Management
Machine Automation

Product Features

Model		BPC-7430-J1A1	BPC-7430-J2A1	BPC-7430-J3A1
Processor System	CPU	Intel® Celeron® Processor J1900
	Frequency	2.0 GHz / 2.42 GHz (Boost), 4 Cores / 4 Threads
	L2 Cache	2 MB
	System Chipset	N/A
	BIOS	AMI UEFI BIOS at 64 Mb
Memory	Technology	DDR3 1333 MHz
	Max. Capacity	8 GB
	Socket	1, 204-pin SO-DIMM
Display	Chipset	Intel Gen7 graphic engine
	Graphics Engine	Intel® HD Graphics with Graphics Base Frequency 688 MHz
	VGA	UXGA 1600 x 1200 at 60 Hz
	HDMI / DP	DP / HDMI (Auto Detect), 1080P at 60 Hz
	Dual Display	DP / HDMI + VGA
I/O Interface	USB	4 USB 3.0 (Hub), 2 Internal USB 2.0 (for Keypro)
	Serial Port	4 COM ports (2 RS-232, 2 RS-232/422/485)
	Isolated Serial Port	N/A	4 isolated COM ports (2 RS-232, 2 RS-232/422/485) with 2kv High voltage Isolation
	Isolated Digital I/O	N/A	8 in / 8 out (isolated) with 2kv High voltage Isolation
	DVD Drive (Option)	1 Slim 12.7mm DVD Optical Drive	N/A
Ethernet	Controller	Dual GbE, 10/100/1000 Mbps (Intel i210)
Audio	Chipset	Realtek ALC886 HD Audio
	Connectors	Line out, Mic in
Expansion	Mini PCIe	1 mini PCIe, signal: USB interface only (with SIM card)
	PCI/PCIe slot	4 PCI expansion slots		3 PCI, 1 PCIe(x1) expansion slots
Storage	mSATA	1 (Swappable)
	SATAII	1, 2.5” HDD/SSD bay
	SATA RAID (Option)	2, 2.5” HDD/SSD bay (Support RAID 0 & RAID 1)		N/A
Power	Power Type	AT / ATX
	Power Supply Voltage	9-36 V DC-input (2 pin Terminal Block)
	Remote Power Connector	2-pin Terminal Block (9~36 V, GND)
	Battery	Lithium 3 V / 210 mAH
	Power Consumption (Typical)	27.6W @12V DC-input ( w/o PCI cards)
	Power Consumption (Max)	33W @ 12V DC-input (w/o PCI cards)
Others	Recovery Button	System Recovery button
	Remote Power Connector	2-pin Terminal Block (PSON, GND)
Environment	Operational	-20~60° C (-4~140° F) (Operational humidity: 60° C @ 95% RH Non-Condensing)
	Non-Operational	-40~85° C and 60° C @ 95% RH Non-condensing
	Vibration	1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x,y,z 3 axes.
	Shock	20 G, IEC 60068-2-27, half sine, 11 ms duration
Certificate	EMC	CE, FCC Class A
General	Dimensions (W x H x D)	194 x 257 x 240 mm (7.64” x 10.12” x 9.45”)
	Weight	5.4 kg (11.88 Ib)
	Operating System	Windows 7/8, WS7E/P, WES8, Linux kernel 2.6.x or above for Fedora, Yocto

Packing List

Description

1 x BPC-7430

1 x Driver CD

1 x Startup Manual

1 x Power Adaptor (AC-to-DC, 12 V @ 7 A, 84 W)

1 x Wallmount BKT

8 x Cable Tie for PCI/PCIe Card

Ordering Information

Part No.	Description
BPC-7430-J1A1	Intel® Celeron® Processor J1900 with 4-slot PCI Expansion, 4COM with Option Item: 1. RAID BOX 2. Recovery mSATA / DVD Drive (alternative)
BPC-7430-J2A1	Intel® Celeron® Processor J1900 with 4-slot PCI Expansion, 8COM, 16 bit Isolated DIO with Option Item: 1. RAID BOX 2. Recovery mSATA
BPC-7430-J3A1	Intel® Celeron® Processor J1900 with 1-slot PCIe(x1) & 3-slot PCI Expansion, 8COM, 16 bit Isolated DIO with Option Item: Recovery mSATA

Optional Items

Part No.	Description
ACS-PS-US	Power cable 3-pin, 180cm, USA Type
ACS-PS-EU	Power cable 3-pin, 180cm, Euro Type
ACS-PS-CN	Power cable 3-pin, 180cm, China Type
KIT-DVD-0B	Slim 12.7mm DVD Optical Drive
KIT-HDB-2B	2 bay 2.5” HDD/SSD RAID BOX
KIT-RECOV-32	32 GB Recovery mSATA SSD

型录

档案类型	档案描述	档案名称	档案大小
PDF	Datasheet of BPC-7430 (English)	DS_Arestech_BPC-7430.pdf	1.5 MB
PDF	Datasheet of BPC-7430 (Traditional Chinese)	DS_Arestech_BPC-7430_ch.pdf	1.6 MB
PDF	Datasheet of BPC-7430 (Simplified Chinese)	DS_Arestech_BPC-7430_cn.pdf	1.7 MB
