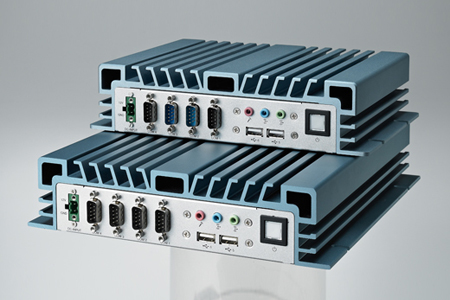

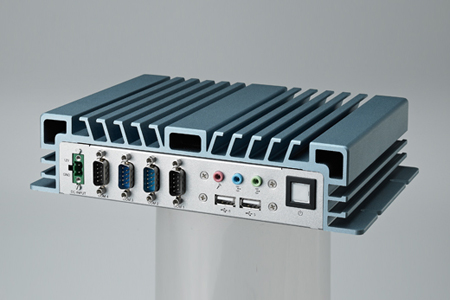

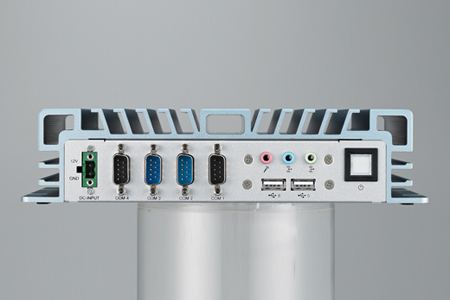

Compact & Fanless Embedded Box PC with Intel® Atom™ D2550 Dual Core Processor with Multiple I/O

BPC-5010 is a fan-less Box PC which is ideal for embedded and automation applications. This embedded hardware platform is designed with Intel® Atom™ Processor D2550 is the first Atom™ processor designed to support DDR3 SDRAM and runs at a faster speed of 1.86 GHz while still maintaining the same low power consumption and attractive price point. Also, BPC-5010 provides high reliability rugged case not only for great protection from EMI, cold and heat, but also integrated with passive cooling design for quiet fan-less operation such as Transportation, Surveillance and Automation.

Features

Slim & Compact Design for space-saving (238x165x55 mm)
Intel® Atom™ Processor D2550 (1M Cache, 1.86GHz)
DDR3 800/1066 MHz SODIMM up to 4GB
2 x GbE, HD Audio, 6 x USB, 4 x COM, 1 x mini PCIe, VGA & HDMI connectors
Support 1 x mSATA, 1 x CFast slot
-20° C ~ 60° C operating temperature
Simple, elegant design with IP40 protection

Applications

Embedded Control System
ATM / Self-service / Kiosk Applications
Warehouse Management
Machine Automation

规格表

型号		BPC-5010
Processor System	CPU	Intel Atom Dual Core processor D2550 1.86GHz
	Frequency	Dual Core up to 1.86GHz
	L2 Cache	1 MB
	System Chipset	Intel NM10
	BIOS	AMI EFI 16 Mbit
Memory	Technology	DDR3 1066 MHz
	Max. Capacity	4 GB
	Socket	1 x 204-pin SODIMM
Display	Graphics Engine	DirectX 9 and OpenGL3.0 support Hardware decode H/W acceleration: MPEG-2 H/W Decode/Acceleration: H.264 / VC1/ WMV9
	VGA	Up to 1920 x 1200
	HDMI	Supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, Supports HDMI v1.3 Up to 1080p
	Dual Display	VGA + HDMI, HDMI + LVDS1(optional), VGA + LVDS1(optional)
I/O Interface	USB	6 x USB 2.0
	Serial Port	4 x COM, 2x RS-232 & 2x RD-232/422/485 (RD-485 support Autoflow control)
	GPIO	8-bit programmable GPIO (optional)
Ethernet	Controller	Dual GbE, 10/100/1000Mbps (Intel 82583V)
Audio	Chipset	Realtek ALC892, Realtek ALC892, High Definition Audio (HD)
Audio	Connectors	Line in, Line out, Mic in
Storage	CFast	N/A
Storage	mSATA	1
Power	Power Type	AT / ATX
	Power Supply Voltage	Single 12 V Input
	Power Consumption (Typical)	0.606 A @ 12 V (10.5 W)
	Power Consumption (Max)	0.729 A @ 12 V (12.6 W)
	Power Adaptor	AC-to-DC, 12 V @ 5 A, 60 W
Environment	Operational	-20 ~ 60° C (-4 ~ 140° F) with I-grade cFast, & 0~40° C (32 ~ 104° F) w/ mSATA(Commercial Temperature Range : 0 ~ 70° C @ 95% RH Non-Condensing)
	Non-Operational	-40~85° C and 60° C @ 95% RH Non-condensing
	Vibration	5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x,y,z 3 axes. (w/ cFast only)
	Shock	50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ cFast only)
Safety	EMC	CE, FCC Class A
Physical Characteristics	Dimensions (W x H x D)	238 x 55 x 165 mm (9.37” x 2.16” x 6.5”)
Physical Characteristics	Weight	1.7 Kg (3.74 lb)

产品列表

內容

1 x BPC-5010

1 x Driver CD

1 x Startup Manual

订单资讯

料号	內容
BPC-5010-A2E	Intel® D2550 1.86 GHz Processor, w/ HDMI, VGA, 6 x USB 2.0, 4 x COM, 2 x GbE, mSATA

选配项目

料号	內容
ACS-PS-US	Power cable: 3-pin, 180 cm (USA)
ACS-PS-EU	Power cable: 3-pin, 180 cm (Euro)
ACS-PS-CN	Power cable: 3-pin, 180 cm (China)
