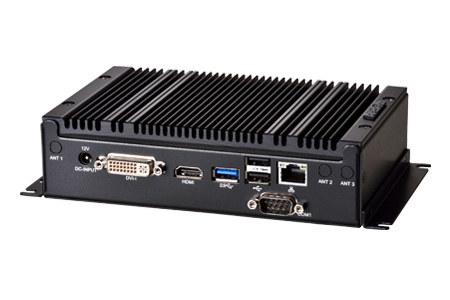

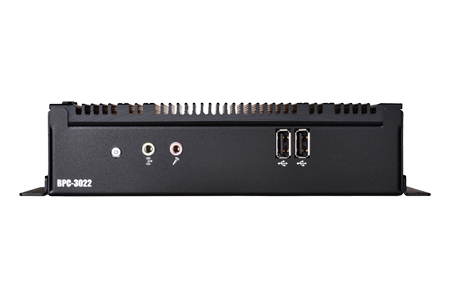

Fanless Embedded Box PC with Intel® Celeron® N2930 Processor and Multiple Video Outputs

The BPC-3022 fanless Box PC is designed with an Intel® Celeron® N2930 processor, the first Celeron processor to support DDR3L SDRAM that runs at 1.83 GHz while maintaining low power consumption and an attractive price point, making this embedded hardware platform ideal for embedded and automation applications. The BPC-3022's compact size and multiple display ports offer the highest degree of flexibility for many kinds of industrial solutions. Its rugged case is designed to protect against electromagnetic interference, extremes of cold and heat, and highlights a passive cooling design for quiet, fanless operation suitable for digital signage, or the medical and automation industries.

Features

Intel® Celeron® Processor N2930 Quad-Core (2M Cache, 1.83 GHz)
Compact size and light weight

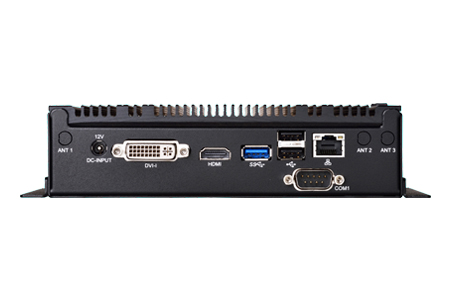

1 GbE, HD Audio, 5 USB, 1 COM, DVI-I, HDMI, 2 mini PCIe (for WLAN & 3G module)
Support 1 SATA HDD/SSD (2.5”), 1 mSATA
-20 ~ 60° C operating temperature

Applications

Embedded Control Systems
Medical
Digital Signage
CIM (Computer Integrated Manufacturing)

规格表

型号		BPC-3022
Processor System	CPU	Intel® Celeron® Processor N2930
	Frequency	Quad-Core up to 1.83 GHz
	L2 Cache	2 MB
	System Chipset	N/A
	BIOS	UEFI
Memory	Technology	DDR3L 1333 MHz SDRAM (1.35 V only)
	Max. Capacity	8 GB
	Socket	1, 204-pin SODIMM
Display	Graphics Engine	Intel® HD Graphics
	DVI-I	Up to 1920 x 1080
	HDMI	Supports 1920 x 1080, Max data rate: up to 1.65 Gb/s, supports HDMI v1.3 up to 1080p
	Dual Display	DVI-I + HDMI
I/O Interface	USB	1 USB 3.0, 4 USB 2.0
I/O Interface	Serial Port	1 COM (RS-232)
Ethernet	Controller	1 GbE LAN, Realtek RTL8111G, 10/100/1000 Mbps
Audio	Chipset	Realtek ALC662, High Definition Audio (HD)
Audio	Connectors	Line out, Mic in
Expansion	Mini PCIe	1 Half-size slot / WIFI module(optional) 1 Full-size slot(only USB and mSATA signal) / 3G module(optional)
Storage	SATA II	2.5” HDD / SSD (Max data transfer rate 300 MB/s)
Storage	mSATA	1 (mSATA shared with full-size mini PCIe slot)
Power	Power Type	AT / ATX
	Power Supply Voltage	Single 12 V DC input
	Power Consumption (Typical)	0.72 A @ 12 V (8.64 W)
	Power Consumption (Max)	1.38 A @ 12 V (15.8 W)
	Power Adaptor	AC-to-DC, 12 V @ 5 A, 60 W
Environment	Operational	-20~60° C (-4~140° F) w/ 2.5” SSD (Humidity: 60° C @80% RH non-condensing)
	Non-Operational	-40~85° C (-40~185° F) w/ 2.5” SSD (Humidity: 60° C @ 80% RH non-condensing)
	Vibration	5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD ) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD)
	Shock	50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Certificate	EMC	CE, FCC Class A
General	Dimensions (W x H x D)	172.8 x 46.1 x 112.4 mm (6.80” x 1.81” x 4.43”)
	Weight	0.91 kg (2.0 Ib)
	Operating System	Windows 7/8/8.1, WS7P/E, WES8, Fedora 20, Ubuntu 14.04

产品列表

內容

1 x BPC-3022

1 x Driver CD

2 x Mounting bracket

1 x Starup Manual

1 x Power Adaptor (AC-to-DC, 12 V @ 5 A, 60 W)

订单资讯

料号	內容
BPC-3022-A1	Intel® N2930 1.83 GHz Processor, w/ HDMI, DVI, 5 USB, 1 GbE , 1 COM Option Item: 1. WIFI module 2. 3G module

选配项目

料号	內容
ACS-PS-US	Power cable: 3-pin, 180 cm, USA Type
ACS-PS-EU	Power cable: 3-pin, 180 cm, Euro Type
ACS-PS-CN	Power cable: 3-pin, 180 cm, China Type
KIT-WIFI-01	Wifi module (IEEE 802.11 B/G/N 1T1R Mini PCIe Card)
KIT-3G-01	3G module (HSPA+/UMTS Mini PCIe Card)

型录

档案类型	档案描述	档案名称	档案大小
PDF	Datasheet of BPC-3022 (English)	DS_Arestech_BPC-3022.pdf	1.2 MB
PDF	Datasheet of BPC-3022 (Traditional Chinese)	DS_Arestech_BPC-3022_ch.pdf	1.2 MB
PDF	Datasheet of BPC-3022 (Simplified Chinese)	DS_Arestech_BPC-3022_cn.pdf	1.3 MB
