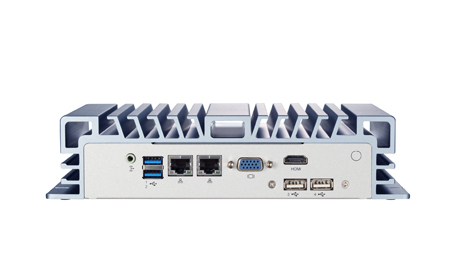

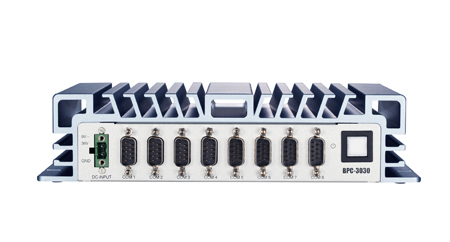

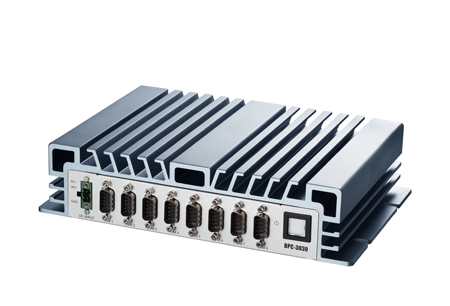

Fanless Embedded Box PC with Intel® Celeron® Processor J1900 and 8 COM Ports

The BPC-3030 fanless Box PC is the ideal hardware platform for embedded and automation applications. Designed with an Intel® Celeron® Processor J1900, the new Bay Trail CPU offers the advantages of desktop performance and low power consumption. With its built-in USB slot design, the BPC-3030 is suitable for integrators requiring software encryption, and is further enhanced with a 9-36 V DC power input, and multiple COM ports (including selected ports with RS-232 or RS-422/485 conversion) that offer a diverse and stable transmission interface ideal for kiosks, automation, and transportation industries. Featuring a rugged case designed to protect against electromagnetic interference, the BPC-3030 includes a passive cooling design for quiet, fanless operation with low power consumption, all at an attractive price point.

Features

Intel® Celeron® Processor J1900 (2.0 GHz)
Single channel DDR3L 1333 MHz SDRAM up to 8 GB
2 GbE, 2 USB 3.0, 2 USB 2.0, 8 COM, VGA & HDMI
Internal USB for software encryption dongle
2.5” SATA HDD
Half-Size mini PCIe
9~36 V DC power input

Applications

Embedded Control Systems
ATM / Self-service / Kiosk Applications
Intelligent Transportation System
Machine Automation

规格表

型号		BPC-3030
Processor System	CPU	Intel ® Celeron ® Processor J1900
	Frequency	Quad-Core up to 2.0 GHz
	L2 Cache	2 MB
	System Chipset	N/A
	BIOS	UEFI
Memory	Technology	Single channel DDR3L 1333 MHz SDRAM
	Max. Capacity	8 GB
	Socket	204-pin SODIMM
Display	Graphics Engine	Intel® Gen7 Intel Graphics DX11*, OGL3.2
	VGA	Up to 1920 x 1200
	HDMI	Supports HDMI 1.4a, max resolution 1920 x 1200
	Dual Display	VGA + HDMI
I/O Interface	USB	2 USB 3.0, 2 USB 2.0, 1 internal USB (Keypro)
	Serial Port	8 COM: 7 RS-232, 1 RS-232/422/485
	GPIO	N/A
Ethernet	Controller	Dual GbE, Realtek RTL8111G-CG, 10/100/1000 Mbps
Audio	Chipset	Realtek ALC662 high definition audio (HD)
Audio	Connectors	Line out
Expansion	Mini PCIe	1, Half-Size
Storage	SSD/HDD	1
Power	Power Type	AT / ATX
	Power Supply Voltage	9-36 V DC input
	Power Consumption (Typical)	0.783A @ 12V (9.4W)
	Power Consumption (Max)	1.25A @ 12V (15W)
Environment	Operational	-20~60° C (-4~140° F) w/ 2.5” SSD (Humidity: 60° C @80% RH non-condensing)
	Non-Operational	-40~85° C and 60° C @ 95% RH noncondensing
	Vibration	5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD only) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD)
	Shock	50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ cFast only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Certificate	EMC	CE, FCC Class A
Physical Characteristics	Dimensions (W x H x D)	238 x 55 x 165 mm (9.37” x 2.16” x 6.5”)
Physical Characteristics	Weight	1.8 kg (3.98 lb)

产品列表

內容

1 x BPC-3030

1 x Driver CD

1 x Startup Manual

1 x Power Adaptor (AC-to-DC, 12 V @ 5 A, 60 W)

订单资讯

料号	內容
BPC-3030-A1E	Intel® Atom™ Bay Trail-M/D, Hyper-Threading, w/ HDMI, VGA, 5 USB, 8 COM, 2 GbE, HDD

选配项目

料号	內容
ACS-PS-US	Power cable: 3-pin, 180 cm, USA Type
ACS-PS-EU	Power cable: 3-pin, 180 cm, Euro Type
ACS-PS-CN	Power cable: 3-pin, 180 cm, China Type

型录

档案类型	档案描述	档案名称	档案大小
PDF	Datasheet of BPC-3030 (English)	DS_Arestech_BPC-3030.pdf	1.4 MB
PDF	Datasheet of BPC-3030 (Traditional Chinese)	DS_Arestech_BPC-3030_ch.pdf	1.5 MB
PDF	Datasheet of BPC-3030 (Simplified Chinese)	DS_Arestech_BPC-3030_cn.pdf	1.6 MB
