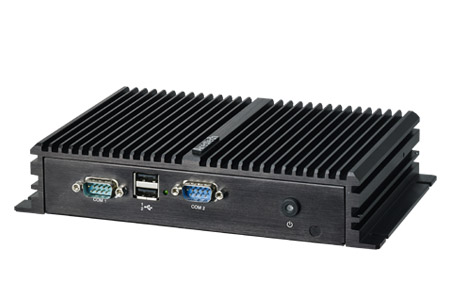

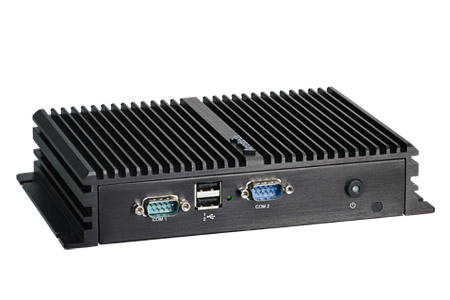

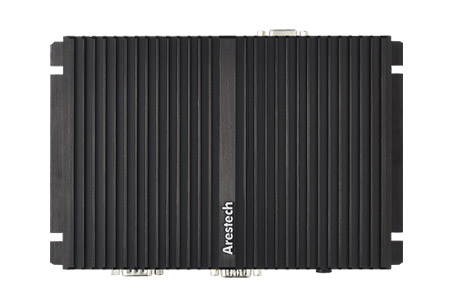

Fanless Embedded Box PC with Intel® Atom™ N2600 Dual-Core Processor and Multiple I/O

The BPC-3020 fanless Box PC is ideal for embedded and automation applications. This embedded hardware platform is designed with the Intel® Atom™ N2600 processor, the first Atom™ processor to support DDR3 SDRAM that runs at 1.6 GHz while maintaining the same low power consumption and attractive price point. The BPC-3020 also has a rugged case designed to protect against electromagnetic interference, extremes of cold and heat, and highlights a passive cooling design for quiet, fanless operation ideal for the Digital Signage, Medical and automation industries.

Features

Intel® Atom™ Processor N2600 (1M Cache, 1.6 GHz)
DDR3 800 MHz SODIMM up to 4 GB
2 x GbE, HD Audio, 6 x USB, 2 x COM, 1 x mini PCIe, for WLAN & HDMI
Support 1 x 2.5” SATA HDD
0° C ~ 40° C operating temperature
Simple, elegant design with IP40 front panel protection

Applications

Embedded Control Systems
Medical
Digital Signage
Factory eSOP controller

Product Features

Model		BPC-3020
Processor System	CPU	Intel Atom Dual-Core processor N2600 1.6 GHz
	Frequency	Dual-Core up to 1.6 GHz
	L2 Cache	1 MB
	System Chipset	Intel NM10
	BIOS	AMI EFI 16 Mbit
Memory	Technology	DDR3 800 MHz
	Max. Capacity	4 GB
	Socket	1 x 204-pin SODIMM
Display	Graphics Engine	DirectX 9 and OpenGL 3.0 support Hardware decode H/W acceleration: MPEG-2 H/W Decode/Acceleration: H.264 / VC1 / WMV9
	VGA	Up to 1920 x 1200
	HDMI	Supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, Supports HDMI v1.3 up to 1080p
	Dual Display	VGA + HDMI
I/O Interface	USB	6 x USB 2.0
	Serial Port	2 x COM, 2 x RS-232
	Mini PCIe	1 x MiniPCIe for WLAN
Ethernet	Controller	Dual GbE, 10/100/1000Mbps Realtek 8111E
Audio	Chipset	Realtek ALC662, High Definition Audio (HD)
Audio	Connectors	Line out
Storage	SATA	1 x SATA II (Max. Data Transfer Rate 300 MB/s)
Power	Power Supply Voltage	Single 12 V DC input
	Power Consumption	0.73 A @ 12 V (8.76 W)
	Power Adaptor	AC-to-DC, 12 V @ 5 A, 60 W
Environment	Operational	0~40° C (32~104° F) w/ 2.5” HDD (Operational humidity: 40° C @ 95% RH Non-condensing)
Certificate	EMC	CE, FCC Class A
Physical Characteristics	Dimensions (W x H x D)	210 x 41 x 133 mm (8.27” x 1.61” x 5.24”)
	Weight	1 Kg ( including 2.5” HDD + Memory module )
	Operating System	Win XP / 7 / 8, WS7E

Packing List

Description

1 x BPC-3020

1 x Driver CD

1 x Starup Manual

1 x DC power

Ordering Information

Part No.	Description
BPC-3020-AIE	Intel® N2600 1.6 GHz Processor

型录

档案类型	档案描述	档案名称	档案大小
PDF	Datasheet of BPC-3020 (English)	DS_Arestech_BPC-3020.pdf	4.7 MB
PDF	Datasheet of BPC-3020 (Traditional Chinese)	DS_Arestech_BPC-3020_ch.pdf	4.8 MB
PDF	Datasheet of BPC-3020 (Simplified Chinese)	DS_Arestech_BPC-3020_cn.pdf	4.9 MB
