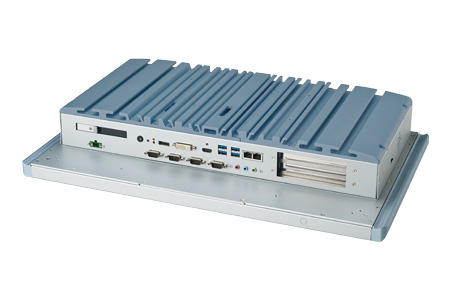

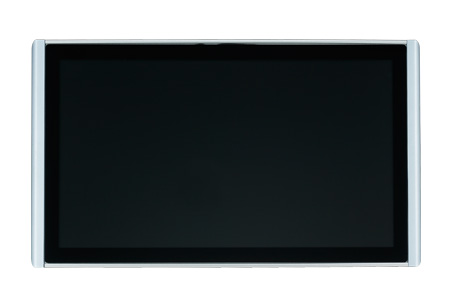

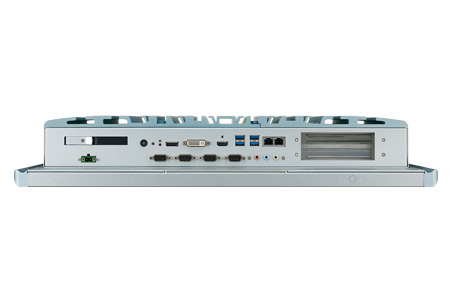

21.5" Fanless Multi-touch Panel PC with 3rd Generation Intel® Core™ i7 / i5 / i3 Processor

Arestech's PPC-321 is a new 21.5" multi-touch Panel PC equipped with a 3rd Generation Intel® Core™ i7 / i5 / i3 processor. Meeting the high demands of harsh environments, the fanless design makes the PPC-321 more reliable for different kinds of applications in factory and machine automation. The PPC-321 is also equipped with dual GbE LAN ports and PCI expansion capability that supports I/O cards, communication cards and motion cards, that make connecting multiple devices easy when integrating solutions, especially in the automation industry.

Features

21.5" TFT Full HD panel with Projected Capacitive Touchscreen
Embedded 3rd Generation Intel® Core™ i7 / i5 / i3 Processor
Projected Capacitive Multi-touch Support up to 10 Points (2 default)
Use Touchscreen with Gloves by Increasing Screen Sensitivity (optional)
1 Swappable 2.5" SATA Drive Bay
Fanless Design
2 PCI Slots

Applications

Human Machine Interface (HMI)
Factory Automation / Manufacturing Automation
ATM / Self-service
Medical

规格表

型号		PPC-321
Processor System	CPU (Socket G2 rPGA 988B)	Intel Core i7-3610QE	Intel Core i5-3610ME	Intel Core i3-3120ME
	Frequency	2.3 GHz (Quad Core)	2.7 GHz (Dual Core)	2.4 GHz (Dual Core)
	L3 Cache	6 MB	3 MB	3 MB
	System Chipset	Intel® QM77 I/O Controller
	BIOS	AMI 64-Mbit SPI Flash BIOS
Memory	Technology	DDR3 1333/1600 MHz
	Max. Capacity	16 GB
	Socket	2 x 204-pin SO-DIMM
Display	Panel Size	21.5” LCD Panel
	Resolution	1920 x 1080 (FHD)
	Viewing Angle	85 x 85 (H) x 80 x 80 (V)
	Brightness	250 (cd/m2)
	Color Support	16.2 M
	Contrast Ratio	1000:1
	Response Time	5 (msec)
	HDMI	1920 x 1200, Max. data rate up to 1.65 Gb/s; HDMI v1.3 up to 1080p
	Dual Display	DVI-I / Display port / HDMI
Touchscreen	Touchscreen Type	Projected Capacitive
	Surface Hardness	7H
	Durability	-
	Transparency	90% (±3%)
I/O Interface	USB	4 x USB 3.0
	Serial Port	4 x COM (Default RS-232; Optional: COM3/COM4 RS-422/485 auto-flow control)
	Expansion	1 x full-size Mini PCIe (mSATA)
Ethernet	Speed	10/100/1000 Mbps
	Controller	GbE1 Intel 82579LM 10/100/1000 Mbps, GbE2 Intel I-210IT 10/100/1000 Mbps
	Connector	2 RJ45 on Rear I/O
Audio	Chipset	Realtek ALC892, High Definition Audio (HD), Line in, Line out, Mic in
Storage	mSATA	1 (Supports mSATA or USB interface module or full size Mini PCIe)
	SATA	Supports one 2.5” SATA III HDD
Power	Power Type	DC power input
	Power Supply Voltage	12 V DC input (±10%)
	Power Consumption (Typical)	5.1 A @ 12 V (61 W)	3.7 A @ 12 V (44.3 W)	3 A @ 12 V (35.9 W)
	Power Management	ACPI
	Battery	Lithium 3 V / 210 mAH
Environment	Operating Temperature	0~50° C (122° F)
	Storage Temperature	-10~60° C (-14~140° F)
	Humidity	5~95% @ 40° C, non-condensing
	Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
General	Dimensions (L x W x H)	558.1 x 323.8 x 94 mm (21.98” x 12.75” x 3.7”)
	Weight	12.14 kg (26.71 lb)
	Mounting Method	Panel / VESA
	Operating System	Win XP / 7, WES 7 / 8

产品列表

內容

1 x PPC-321

1 x Driver CD

7 x Panel Mounting Screws

1 x Power Adaptor (AC-to-DC,
12 V @ 7 A, 84 W)

订单资讯

料号	內容
PPC-321P-00E	21.5” Fanless Projected Capacitive Multi-touch Panel PC, Supports 3rd Gen. Intel® Core™ i rPGA G2 Socket Processor
PPC-321P-1A1E	21.5” Fanless Projected Capacitive Multi-touch Panel PC with Intel® Core™ i7-3610QE Processor
PPC-321P-2A1E	21.5” Fanless Projected Capacitive Multi-touch Panel PC with Intel® Core™ i5 3610ME Processor
PPC-321P-3A1E	21.5” Fanless Projected Capacitive Multi-touch Panel PC with Intel® Core™ i3 3120ME Processor

选配项目

料号	內容
ACS-PS-US	Power cable: 3-pin, 180 cm, USA Type
ACS-PS-EU	Power cable: 3-pin, 180 cm, Euro Type
ACS-PS-CN	Power cable: 3-pin, 180 cm, China Type
ACS-110-STD	VESA Table Stand

型录

档案类型	档案描述	档案名称	档案大小
PDF	Datasheet of PPC-321 (English)	DS_Arestech_PPC-321.pdf	1.4 MB
PDF	Datasheet of PPC-321 (Traditional Chinese)	DS_Arestech_PPC-321_ch.pdf	1.4 MB
PDF	Datasheet of PPC-321 (Simplified Chinese)	DS_Arestech_PPC-321_cn.pdf	1.6 MB
