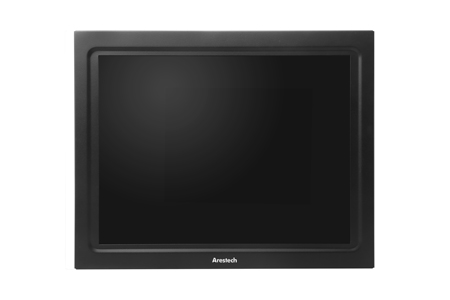

15" Fanless Multi-touch Panel PC with Intel® Atom™ D2550 Processor

Arestech's PPC-150 is a 15" fanless multi-touch Panel PC equipped with an Intel® Atom™ D2550 processor. Meeting the high demands of harsh environments, the fanless design makes the PPC-150 more reliable for different kinds of applications in the FA/MA industries. Dual GbE LAN, 4 serial ports, and 4 USB ports make connecting multiple devices easy when integrating solutions.

Features

Fanless design and low power consumption
15" TFT XGA Panel with Projected Capacitive/ Resistive Touchscreen
Embedded Intel® Atom™ D2550 1.86 GHz Processor
Up to 4 GB DDR3 1066 SDRAM memory
Internal SATA 2.5" HDD and mSATA socket

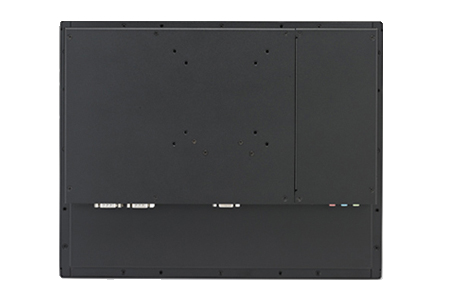

Panel / VESA mounting

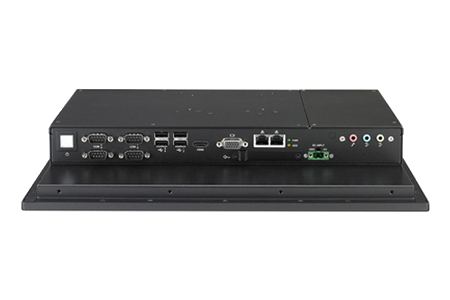

I/O connectors: 4 USB, 4 COM, 1 mini PCIe, VGA, HDMI, 2 GbE, HD Audio
Front sealed panel design provides IP54 protection

Applications

Human Machine Interface (HMI)
Factory Automation/Manufacturing Automation
ATM/Self-service/Kiosk Applications
Vending/Ticketing Machines

规格表

型号		PPC-150P	PPC-150R
Processor System	CPU	Intel Atom Dual Core processor D2550 1.86 GHz
	Frequency	Dual Core 1.86 GHz
	L2 Cache	1 MB
	System Chipset	Intel Atom D2550 + Intel NM10
	BIOS	AMI EFI 16 Mbit
Memory	Technology	DDR3 1066 MHz
	Max. Capacity	4 GB
	Socket	1 x 204-pin SO-DIMM
Display	Panel Size	15” LED Panel
	Resolution	1024 x 768 (XGA)
	Viewing Angle	80 x 80 (H) x 80 x 80 (V)
	Brightness	250 (cd/m2)
	Color Support	16.7 M
	Contrast Ratio	600:1
	Response Time	8 ms
Touchscreen	Touchscreen Type	Projected Capacitive	5-Wire Resistive
	Surface Hardness	7H	3H
	Durability	-	36 millions times
	Transparency	90%(±3%)	80%(±3%)
I/O Interface	USB	4 x USB 2.0
	Serial Port	4 x COM (Default RS-232 ;Optional: COM2/COM3 supports RS-422/485 auto flow control)
	Expansion	1 x miniPCIe
Ethernet	Speed	10/100/1000 Mbps
	Controller	GbE1 Intel 82583V 10/100/1000 Mbps, GbE2 Intel 82583V 10/100/1000 Mbps
	Connector	2 RJ45 on Rear I/O
Audio	Chipset	Realtek ALC892, High Definition Audio (HD), Line in, Line out, Mic in
Storage	mSATA	mSATA or full size Mini PCIe (default) selected by BIOS
	SATA	1 x SATA II (Max. Data Transfer Rate 300 MB/s)
Power	Power Type	Single 12 V DC power input
	Power Supply Voltage	Single 12 V input (±10%)
	Power Consumption (Max)	25W @ 12V
	Power Management	ACPI
	Battery	Lithium 3 V / 210 mAH
Environment	Operating Temperature	0~50° C (32~122° F)
	Storage Temperature	-20~60° C (-4~140° F)
	Humidity	5~95% @ 40° C, non-condensing
	Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
General	Dimensions (L x W x H)	364.6x290.6x58.9 mm (14.35”x11.44”x2.32”)
	Weight	4.37kg (9.6 lb)
	Operating System	Windows XP / XPE / 8, WES7 E/P

产品列表

內容

1 x PPC -150

1 x Driver CD

6 x Panel Mounting Screws

1 x Power Adaptor (AC-to-DC,12 V @ 5 A, 60 W)

订单资讯

料号	內容
PPC-150P-A2E	15” Fanless Multi-touch Panel PC with Intel® Atom™ D2550 1.86 GHz Processor
PPC-150R-A2E	15” Fanless Resistive Touch Panel PC with Intel® Atom™ D2550 1.86 GHz Processor

选配项目

料号	內容
ACS-PS-60W	Power Adaptor: AC-to-DC, 12 V @ 5 A, 60 W w/ terminal block, 0~40° C temp. range, for office & home use
ACS-PS-US	Power cable: 3-pin, 180 cm, USA Type
ACS-PS-EU	Power cable: 3-pin, 180 cm, Euro Type
ACS-PS-CN	Power cable: 3-pin, 180 cm, China Type
ACS-A812	VESA Table Stand

型录

档案类型	档案描述	档案名称	档案大小
PDF	Datasheet of PPC-150 (English)	DS_Arestech_PPC-150.pdf	1.4 MB
PDF	Datasheet of PPC-150 (Traditional Chinese)	DS_Arestech_PPC-150_ch.pdf	1.4 MB
PDF	Datasheet of PPC-150 (Simplified Chinese)	DS_Arestech_PPC-150_cn.pdf	1.5 MB
