10.4" Fanless Multi-touch Panel PC with Intel® Atom™ D2550 Processor

Arestech's PPC-100 is a new 10.4" Panel PC equipped with an Intel® Atom™ D2550 processor. Meeting the high demands of harsh environments, the fanless design makes PPC-100 more reliable in different kinds of applications in factory and machine automation. Dual GbE LAN, 2 serial ports, and 4 USB ports make connecting multiple devices easy when integrating solutions.

Features

10.4" TFT SVGA LED Panel with Projected Capacitive / Resistive Touchscreen
Embedded Intel® Atom™ D2550 1.86 GHz Processor
System memory up to 4 GB DDR3 1066 SDRAM
Internal SATA 2.5" HDD and mSATA socket
Panel and VEA mounting
I/O connectors: 4 USB, 3 COM, 1 mini PCIe

Applications

Human Machine Interface (HMI)
Factory Automation / Manufactory Automation
ATM / Self-service / Kiosk Applications
Vending Machine / Ticketing Machine

规格表

型号		PPC-100P	PPC-100R
Processor System	CPU	Intel Atom Dual Core processor D2550 1.86 GHz
	Frequency	Dual Core 1.86 GHz
	L2 Cache	1 MB
	System Chipset	Intel Atom D2550 + Intel NM10
	BIOS	AMI EFI 16Mbit
Memory	Technology	DDR3 1066 MHz
	Max. Capacity	4 GB
	Socket	1 x 204-pin SO-DIMM
Display	Panel Size	10.4” LED Panel
	Resolution	800 x 600 (SVGA)
	Viewing Angle	80 x 80 (H) x 70 x 70 (V)
	Brightness	230 (cd/m2)
	Color Support	16.2M
	Contrast Ratio	500:1
	Response Time	35 (msec)
Touchscreen	Touchscreen Type	Projected Capacitive	5-Wire Resistive
	Surface Hardness	7H	3H
	Durability	-	10 millions times
	Transparency	90%(±3%)	80%(±3%)
I/O Interface	USB	4 x USB 2.0
	Serial Port	3 x COM (Default RS-232 ;Optional: COM2/COM3 supports RS-422/485 auto flow control)
	Expansion	1 x miniPCIe
Ethernet	Speed	10/100/1000 Mbps
	Controller	GbE1 Intel 82583V 10/100/1000 Mbps, GbE2 Intel 82583V 10/100/1000 Mbps

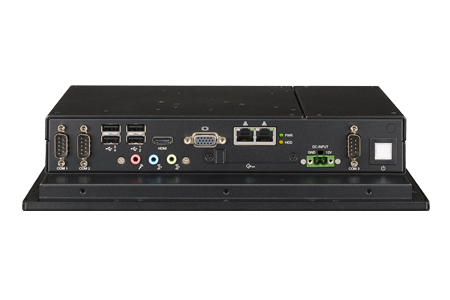

	Connector	2 RJ45 on Rear I/O
Audio	Chipset	Realtek ALC892, High Definition Audio (HD), Line in, Line out, Mic in
Storage	mSATA	(Supports either mSATA or full size miniPCIe, selected by BIOS, default support miniPCIe)
	SATA	1 x SATA II (Max. Data Transfer Rate 300 MB/s)
Power	Power Type	Single 12 V DC power input
	Power Supply Voltage	Supports single 12V input, ± 10%
	Power Consumption (Max)	15.5W @ 12 V
	Power Management	ACPI
	Battery	Lithium 3 V / 210 mAH
Environment	Operating Temperature	-20~60° C (-4~140° F)
	Storage Temperature	-20~60° C (-4~140° F)
	Humidity	5~95% @ 40° C, non-condensing
	Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
General	Dimensions (L x W x H)	281.6x222.6x59.2 mm (11.08”x8.76”x2.32”)
	Weight	1.83kg (4.02lb)
	Operating System	Windows XP / XPE / 8, WES7 E/P

产品列表

內容

PPC-100

1 x Driver CD

1 x Power Adaptor (AC-to-DC, 12 V @ 5 A, 60 W)

6 x Panel Mounting Screws

订单资讯

料号	內容
PPC-100P-A2E	10.4” Fanless Multi-touch Panel PC with Intel® Atom™ D2550 1.86 GHz Processor
PPC-100R-A2E	10.4” Fanless Resistive Touch Panel PC with Intel® Atom™ D2550 1.8 GHz Processor

选配项目

料号	內容
ACS-PS-US	Power cable: 3-pin, 180 cm, USA Type
ACS-PS-EU	Power cable: 3-pin, 180 cm, Euro Type
ACS-PS-CN	Power cable: 3-pin, 180 cm, China Type
ACS-A812	VESA Table Stand
