Fanless In-Vehicle Box PC with 4th/5th Generation Intel® Core™ i7 / i5 / i3 Processor

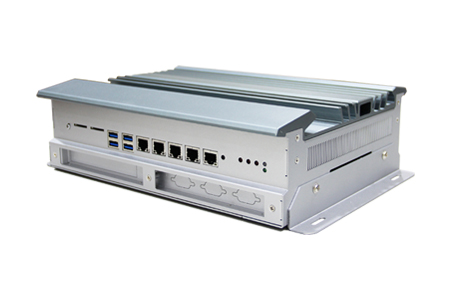

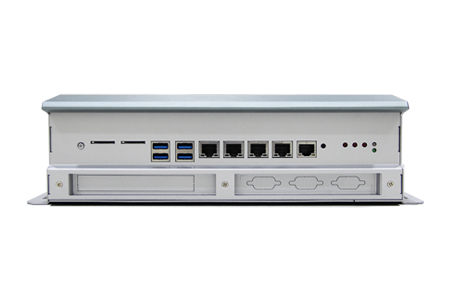

Arestech's VBC-6060 is a fanless Box PC specifically designed for use in vehicles. Featuring a high performance 4th/5th Gen Intel® Core™ processor, the VBC-6060 has the ability to easily adapt to vehicle-specific applications. An Intel® HD Graphics 4600 engine provides high resolution and smooth performance via three different video outputs (VGA, DP, HDMI). Four PoE ports can be directly connected to video surveillance devices, simplifying the installation procedure. Controller Area Network (CAN) bus 2.0B support can also be used to communicate with and control additional devices within a vehicle; three internal HDDs provide for the largest possible storage capacity. The VBC-6060 has three Mini PCIe slots (for 3G / WLAN / LTE modules), and a build-in GPS and BDS system for real-time information access in remote or mobile environments. The VBC-6060 also features a rugged design, supports 9-36 V power input, and can operate within a wide temperature range (-25~70° C) and high vibration environments.

Features

In-Vehicle Fanless Box PC, 4th/5th Gen Intel® Core™ i CPU
CAN Bus 2.0B, 4 PoE Ports, Isolated Digital I/O
Dual-Mode GNSS, GPS+BDS Systems
3 Mini PCIe (3G / WLAN / LTE Modules), 2 SIM Ejectors
9-36 V DC Power Input with Ignition Pin and Swappable FUSE
-25~70° C Operating Temperature

Applications

In-vehicle Control Systems
Remote Video Surveillance
Multimedia Display and Digital Signage in Vehicles
Wireless Network Communication

Product Features

Model		VBC-6060-1A1	VBC-6060-2A1	VBC-6060-3A1
Processor System	CPU	Intel® Core™ i7-4700EQ	Intel® Core™ i5-4400E	Intel® Core™ i3-4110E
	Frequency	Quad-Core 2.40 GHz	Dual-Core 2.70 GHz	Dual-Core 2.60 GHz
	Cache	Intel® Smart Cache 6 MB	Intel® Smart Cache 3 MB
	System Chipset	Intel® QM87
	BIOS	UEFI
Memory	Technology	DDR3L 1333 / 1600 MHz SDRAM
	Max. Capacity	16 GB
	Socket	2 (204-pin SO-DIMM)
Display	Graphics Engine	Intel® HD Graphics 4600
	VGA	Up to 1920 x 1200 at 60 Hz
	HDMI	1.3a, up to 2560 x 1600 at 60Hz
	DP	Up to 3840 x 2160 at 60Hz
	Three Display	1 VGA + 1 HDMI + 1 DP (under Windows OS only)

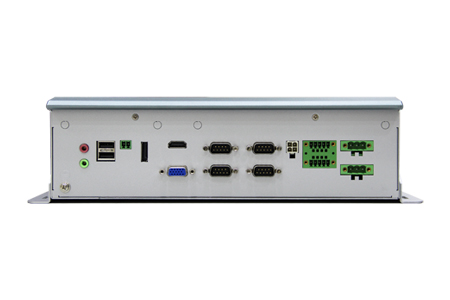

I/O Interface	USB	4 USB 3.0, 2 USB2.0
	Serial Port	2 RS-232/422/485 (One supports 5/12 V, 0.5 A), 2 RS-232
	Digital I/O	4-bit digital input / output (5 V @ 0.5 A) w/ isolation
	DC output	12 V DC output (2x2 pin), 1 A
	CAN Bus	Built-in CAN bus 2.0B. Optional OBDII function (SAE J1939 / J1708)
Ethernet	Controller	1 GbE, 10/100/1000 Mbps, Intel i217LM; 2 PoE, 10/100/1000 Mbps, IEEE802.3at, Intel i210; 2 PoE, 10/100/1000 Mbps, IEEE802.3af, Intel i210
GNSS	System	GPS + BDS
Audio	Chipset	Realtek ALC892 HD Audio
	Connectors	Line out, Mic in
Expansion	Mini PCIe	1 Mini PCIe (Full-size), 2 Mini PCIe (Full-size) w/ USB signal only
	SIM Socket	2
Storage	SATA	Default: 3 Internal 2.5” HDD/SSD (RAID 0/1/5) Optional: 1 Internal 2.5” HDD/SSD, 1 Swappable 2.5” HDD/SSD Bay
	mSATA	1
Power	Power Type	AT / ATX
	Power Supply Voltage	9-36 V DC input (3-pin Terminal Connector)
	Power Connector	3-pin Terminal Block (Supports Ignition Pin); 3-pin Remote Power Connector
	Fuse	30 A, 58 V max.
	Power Adaptor	AC-to-DC, 12 V @ 15 A, 180 W
	Power Consumption (Typical)	2.26 A @ 12 V (27.1 W) for Core i7-4700EQ, not including PoE Device and expansion card
	Power Consumption (Max)	8.33 A @ 12 V (100 W) for Core i7-4700EQ, not including PoE Device and expansion card
Others	Recovery Button	System Recovery button
Environment	Operational	-25~70° C (-13~158° F) (Humidity: 70° C @ 80% RH Non-condensing)
	Non-Operational	-40~85° C (-40~185° F) (Humidity: 70° C @ 80% RH Non-condensing)
	Vibration	Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure; Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
	Shock	Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g Storage: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certificate	EMC	CE & FCC Class A, CCC, eMARK 13, ISO 7637-2, EN50155
General	Dimensions (W x H x D)	290 x 91.49 x 238.7 mm (11.42” x 3.60” x 9.40”)
	Weight	4.75 kg (10.45 lb)
	Operating System	Windows 7/8, WS7E/P, WES8, Linux kernel 2.6.x or above for Fedora

Packing List

Description

1 x VBC-6060

1 x Driver CD

2 x Wall Mount Bracket

1 x Power Adaptor (AC-to-DC, 12 V @ 15 A, 180 W)

Ordering Information

Part No.	Description
VBC-6060-1A1	Intel® Core i7-4700EQ w/ 6 USB, 4 COM, GPIO, CAN Bus, 1 GbE, 4 PoE, line out, mic in, 1 VGA, 1 DP, 1 HDMI, 1 GPS/BDS
VBC-6060-2A1	Intel® Core i5-4400E w/ 6 USB, 4 COM, GPIO, CAN Bus, 1 GbE, 4 PoE, line out, mic in, 1 VGA, 1 DP, 1 HDMI, 1 GPS/BDS
VBC-6060-3A1	Intel® Core i3-4110E w/ 6 USB, 4 COM, GPIO, CAN Bus, 1 GbE, 4 PoE, line out, mic in, 1 VGA, 1 DP, 1 HDMI, 1 GPS/BDS

Optional Items

Part No.	Description
ACS-PS-US	Power cable 3-pin, 180cm, USA Type
ACS-PS-EU	Power cable 3-pin, 180cm, Euro Type
ACS-PS-CN	Power cable 3-pin, 180cm, China Type
KIT-WIFI-01	Wifi module (IEEE 802.11 B/G/N 1T1R Mini PCIe Card)
KIT-3G-01	3G module (HSPA+/UMTS Mini PCIe Card)
KIT-GPS-AT	GPS+BDS Dual Mode Antenna
KIT-HDB-1B	1 bay 2.5” HDD/SSD Swappable Drive Enclosure

Datasheet

Type	Description	File Name	File Size
PDF	Datasheet of VBC-6060 (English)	DS_Arestech_VBC-6060.pdf	1.3 MB
