Industrial 18.5” LED multi-touch monitor, supporting Windows 7 gestures plus VGA/DVI/HDMI interfaces

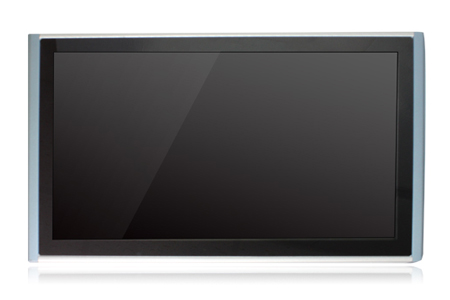

Arestech's TPM-3218 is an industrial grade LED full high definition (FHD) multi-touch monitor, support up to 1366 x 768 resolution and 50,000 hours of operational life for the LED display. The multi-touch screen needs practically no force to perform tasks on the display and provides optimum durability and transparency. Additionally, the VGA/DVI/HDMI interfaces are ideal for supporting various applications.

Features

LED backlight provides 20~30% power savings
Resolution up to 1366 x 768 (HD)

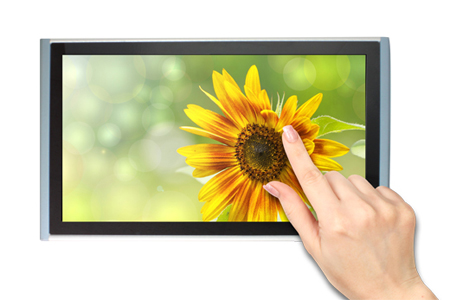

Projected capacitive multi-touch screen
Windows 7 gestures support
Screen Hardness : Mohs 7
90% transparency provides a clear image
Simple, elegant design with IP54 front panel protection

Applications

Industrial HMI Display Systems
ATM / Self-service / Kiosk Applications
Vending / Ticketing Machines
Point-of-information Terminals
Factory / Machine Automation

规格表

型号		TPM-3218
Display	Panel Size	18.5” LED LCD Panel
	Resolution	1366 x 768 resolution (HD)
	Viewing Angle	85 x 85 (H), 80 x 80 (V)
	Brightness	250 (cd/m2)
	Color Support	16.7 M
	Contrast Ratio	1000:1
	Response Time	5 [msec]
Touchscreen	Touchscreen Type	Projected capacitive multi-touch screen
	Surface Hardness	7H
	Transparency	90% (±3%)

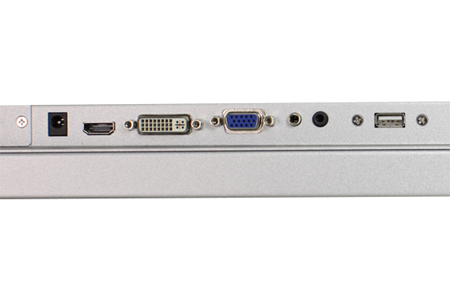

I/O Interface	Video Interface	1 x VGA, 1 x DVI-D, 1 x HDMI
I/O Interface	Touch Interface	1 x USB
OSD Control	Function Key	5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language
Power	Power Connector	DC Jack
	Power Input	12V DC input
	Power Consumption	Typical: 9W
	Power Adapter	40 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 5A MAX output
Environment	Operating Temperature	0~50° C (32~122° F)
	Storage Temperature	-30~70° C (-22~158° F)
	Humidity	5~95% @ 40° C, non-condensing
	Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
General	Dimensions (L x W x H)	488.8 x 284.2 x 42.8 mm (19.24” x 11.19” x 1.69”)
General	Weight	5.0 kg (11.01 lb)

产品列表

內容

1 x TPM-3218P-A1E

1 x USB Cable

1 x VGA Cable

1 x Power Adapter (AC-to-DC 12 V @ 3.3 A, 40 W)

订单资讯

料号	內容
TPM-3218P-A1E	18.5” HD Industrial LED Projected Capacitive Multi-touch Monitor

选配项目

料号	內容
ACS-PS-40W	AC-to-DC 12 V @ 3.3 A, 40 W power adapter, 0~40° C for office & home use
ACS-PS-US	Power cable: 3-pin, 180 cm (USA)
ACS-PS-EU	Power cable: 3-pin, 180 cm (Euro)
ACS-PS-CN	Power cable: 3-pin, 180 cm (China)
ACS-A812	LCD VESA Table Stand

型录

档案类型	档案描述	档案名称	档案大小
PDF	Datasheet of TPM-3218 (English)	DS_Arestech_TPM-3218.pdf	1.3 MB
PDF	Datasheet of TPM-3218 (Traditional Chinese)	DS_Arestech_TPM-3218_ch.pdf	1.3 MB
PDF	Datasheet of TPM-3218 (Simplified Chinese)	DS_Arestech_TPM-3218_cn.pdf	1.4 MB
