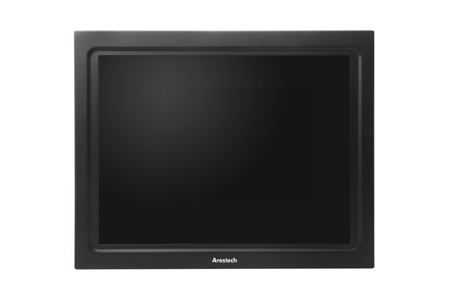

Industrial 15" LED Projected Capacitive Multi-touch Display

Arestech's ultra-slim LED display utilizes an industrial grade panel that provides 50,000 hours of operational life.The TPM-3215 offers a variety of touch solutions (5-wire resistive and projective capacitive), and optional open frame display design allows customers to integrate TPM-3215 into different environments. In addition, the TPM-3215 is equipped with a projective capacitive touchscreen that supports multi-touch gestures, fast touch screen response, high surface hardness and screen light resistance. The TPM-3215 provides more convenience in industrial automation, medical, digital signage, home and office automation applications.

Features

15” XGA LCD panel supports up to 1024 x 768 resolution
5-wire resistive touch technology
12~24 V DC power input with terminal block
Panel and VESA mounting
Combined touch interfaces: RS-232 and USB
Simple, elegant design with IP54 front panel protection
-20~+60° C operating temperature (optional)

Applications

Embedded HMI Display System
Factory / Manufacturing Automation
ATM / Self-service / Kiosk Applications
Vending / Ticketing Machines

规格表

型号		TPM-3215P	TPM-3215R
Display	Panel Size	15” LCD Panel
	Resolution	1024 x 768 (XGA)
	Viewing Angle	80 x 80 (H) x 80 x 80 (V)
	Brightness	250 (cd/m2)
	Color Support	16.7 M
	Contrast Ratio	600:1
	Response Time	8 [msec]
Touchscreen	Touchscreen Type	Projected Capacitive	5-Wire Resistive
	Surface Hardness	7H	3H
	Durability	-	10 million touches
	Transparency	90%(±3%)	80% (±3%)

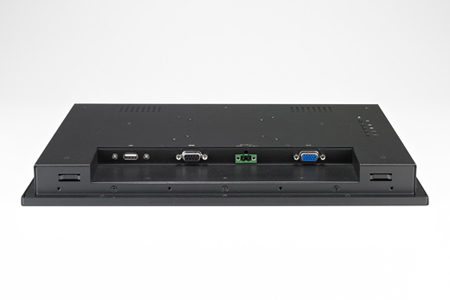

I/O Interface	Video Interface	1 x VGA
	Touch Interface	1 x USB, 1 x RS-232
OSD Control	Function Key	5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language
Power	Power Connector	Pheonix Terminal Block, 2 pins
	Power Input	12~24V DC input, Single Power Source
	Power Consumption	Typical: 10.1W
Environment	Operating Temperature	0~50° C (32~122° F)
	Storage Temperature	-30~70° C (-22~158° F)
	Humidity	5~95% @ 40° C, non-condensing
	Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
General	Dimensions (W x H x D)	364.6 x 290.6 x 36 mm (14.35”x 11.44”x 1.41”)
	Weight	3.7kg (8.14 lb)

产品列表

內容

1 x TPM-3215P-A1E

1 x Driver CD

1 x USB Cable

1 x VGA Cable

6 x Panel Mount Screws

订单资讯

料号	內容
TPM-3215P-A1E	15” XGA Industrial Ultra-slim Projected Capacitive Multi Touch Monitor
TPM-3215R-A1E	15” XGA Industrial Ultra-slim Resistive Touch Monitor

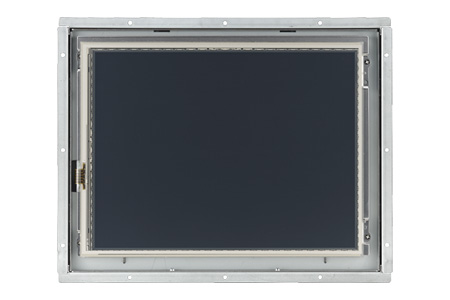

TPM-3115R-A1E	15” XGA Industrial Ultra-slim Resistive Touch Open Frame

选配项目

料号	內容
ACS-PS-60W	Adaptor AC-to-DC 12V @5A, 60W, w/ phoenix power connector, 0~40° C for office & home use
ACS-PS-US	Power cable 3-pin, 180cm, USA Type
ACS-PS-EU	Power cable 3-pin, 180cm, Euro Type
ACS-PS-CN	Power cable 3-pin, 180cm, China Type
ACS-A812	LCD VESA Table Stand

型录

档案类型	档案描述	档案名称	档案大小
PDF	Datasheet of TPM-3215 (English)	DS_Arestech_TPM-3215.pdf	2.1 MB
PDF	Datasheet of TPM-3215 (Traditional Chinese)	DS_Arestech_TPM-3215_ch.pdf	1.6 MB
PDF	Datasheet of TPM-3215 (Simplified Chinese)	DS_Arestech_TPM-3215_cn.pdf	1.5 MB

TPM-3115/3215
