TPM-3115/3215 Press Release

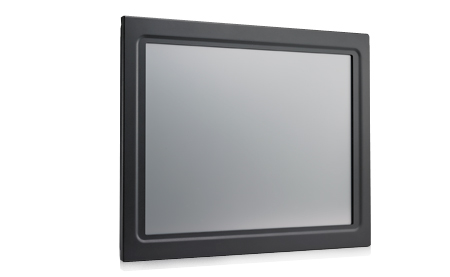

Arestech Ultra-slim Open Frame / Industrial Touch Monitor for Easy Installation



June 6, 2012, Taipei

Arestech, an expert in embedded platform solutions, announced today the launch of its TPM-3115/3215, a 15" XGA industrial LED open frame monitor. The TPM-3000 series has a slim and light design presenting the greatest versatility in industrial grade display solutions. The open front bezel design offers flexibility for reengineering customized face plates and is ideal for any embedded application. The TPM-3115 has integrated mounting brackets on the chassis, making installation easy. Versatile mounting methods include rear and VESA mounting (75 x 75 mm or 100 x100 mm).

Slim and Light Design for Easy Installation

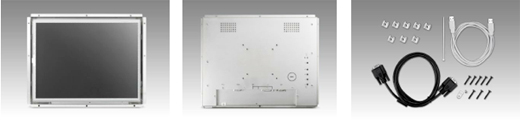

The TPM-3115 open frame monitor incorporates simple and slim mechanical design into a two piece metal frame structure (middle frame and back cover). This simple, yet slim design is only 32.8 mm thick (non-touch solution) whereas competitive solutions are normally above 50 mm thick—an incredible 20% space savings—which enables more efficient installation into a greater variety of applications. Because of its ultra-slim design, the TPM-3115 weighs only 2.6 kg (non-touch solution), while competitive solutions in the market today are usually above 3.5 kg.

Flexible Mounting Solutions: Rear Mount / VESA Mount

Designed with mounting brackets and VESA mount screw-holes on the back panel, the TPM-3115 provides multiple, convenient mounting methods that simplify integration with any embedded application.
  • Rear Mount: Easy installation with integrated brackets using 12 M3 screws
  • VESA Mount: Compliant with standard VESA mounting hole sizes—75 x 75 mm and 100 x 100 mm, suitable for display sizes under 22”, or under 14 kg.
     which are suitable for display sizes under 22” or under 14kg weight.
The TPM-3115 is available now with two options—TPM-3115 standard and TPM-3115 E. For more information, please contact your local sales representative, or visit www.arestech.com.tw.



TPM-3115
15" XGA Industrial Open Frame Monitor
Specifications

Display Panel Size 15” LCD Panel
Resolution 1024 x 768 (XGA)
Viewing Angle 80 x 80 (H) x 80 x 80 (V)
Brightness 250 (cd/m2)
Color Support 16.7 M
Contrast Ratio 600:1
Response Time 8 [msec]
Touchscreen Touchscreen Type 5-Wire Resistive
Surface Hardness 3H
Durability 10 million touches
Transparency 80% (±3%)
Environment Operating Temperature 0~50° C (32~122° F)
Storage Temperature -20~60° C (-4~140° F)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
System I/O 1 x VGA, 1 x 12~24 V DC power input pluggable terminal block, 1 x USB, 1 x RS-232
(USB & RS-232 are reserved for touch connection only)
OSD Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off
Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language
Power 60 W power adapter, with AC 100~240 V input and DC +12 V @ 5 A max. output


About Arestech
Founded in 2011, Arestech delivers visionary and trustworthy industrial embedded computing and touch panel solutions that empower businesses. Arestech cooperates closely with solution partners to provide complete embedded solutions for a wide array of applications in diverse industries: fanless embedded box PC, touch panel, and applied in-vehicle computing. (Corporate Website: www.arestech.com.tw).
