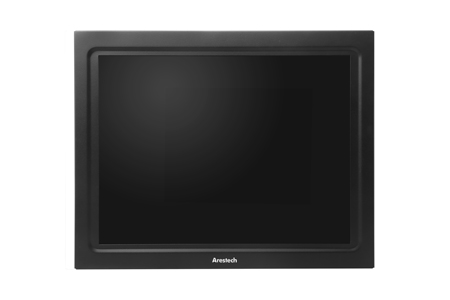

Industrial 17" LED Projected Capacitive Multi-touch Display

Arestech's ultra-slim LED display utilizes an industrial grade panel that provides 50,000 hours of operational life.The TPM-3217 offers a variety of touch solutions (5-wire resistive and projective capacitive), and optional open frame display design allows customers to integrate TPM-3217 into different environments. In addition, the TPM-3217 is equipped with a projective capacitive touchscreen that supports multi-touch gestures, fast touch screen response, high surface hardness and screen light resistance. The TPM-3217 provides more convenience in industrial automation, medical, digital signage, home and office automation applications.

Features

17" LED SXGA LCD panel supports up to 1280 x 1024 resolution
LED backlighting provides 20~30% power savings
5-wire resistive / projected capacitive touch technology
12~24 V DC power input pluggable terminal block

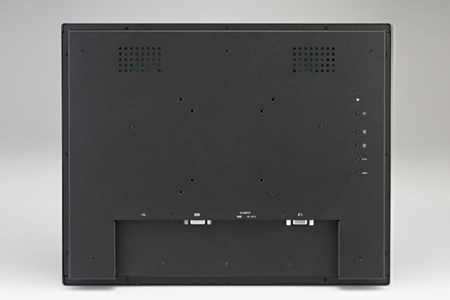

Panel and VESA mounting
Combined touch interfaces: RS-232 and USB
Simple, elegant design with IP54 front panel protection
-20~60° C operating temperature
Windows 2000 / XPE / CE / 7 / 8 and Linux driver support

Applications

Embedded HMI Display System
Factory / Manufacturing Automation
ATM / Self-service / Kiosk Applications
Vending / Ticketing Machines

Product Features

Model		TPM-3217P	TPM-3217R
Display	Panel Size	17” LED LCD Panel
	Resolution	1280 x 1024 (SXGA)
	Viewing Angle	85 x 85 (H), 80 x 85 (V)
	Brightness	350 (cd/m2)
	Color Support	16.7 M
	Contrast Ratio	1000:1
	Response Time	30 [msec]
Touchscreen	Touchscreen Type	Projected Capacitive	5-Wire Resistive
	Surface Hardness	7H	3H
	Durability	-	10 million touches
	Transparency	90%(±3%)	80% (±3%)

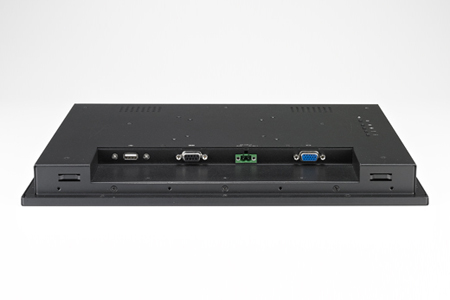

I/O Interface	Video Interface	1 x VGA
	Touch Interface	1 x USB, 1 x RS-232
OSD Control	Function Key	5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language
Power	Power Connector	Pheonix Terminal Block, 2 pins
	Power Input	12~24V DC input, Single Power Source
	Power Consumption	Typical: 22W
Environment	Operating Temperature	-20~60° C (-4~140° F)
	Storage Temperature	-30~70° C (-22~158° F)
	Humidity	5~95% @ 40° C, Non-condensing
	Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
General	Dimensions (W x H x D)	411.4 x 337.5 x 40.0 mm (16.19”x 13.28”x 1.57”)
	Weight	4.82kg (10.6 lb)

Packing List

Description

1 x TPM-3217

1 x Driver CD

1 x USB Cable

1 x VGA Cable

6 x Panel Mounting Screws

Ordering Information

Part No.	Description
TPM-3217P-A1E	17” SXGA Industrial LED Ultra-slim Projected Capacitive Multi-touch Monitor
TPM-3217R-A1E	17” SXGA Industrial LED Ultra-slim Resistive Touch Monitor

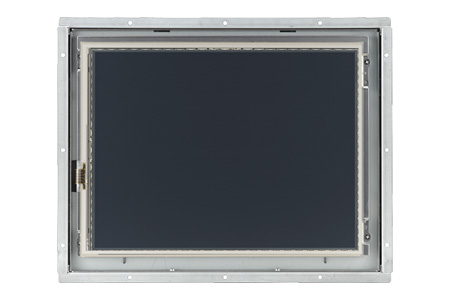

TPM-3117R-A1E	17” SXGA Industrial LED Ultra-slim Resistive Touch Open frame

Optional Items

Part No.	Description
ACS-PS-60W	AC-to-DC 12 V @ 5 A, 60 W power adapter, 0~40° C for office & home use
ACS-PS-60W-WT	AC-to-DC 24 V @ 2.62 A, 63 W power adaptor, -20~60° C
ACS-PS-US	Power cable: 3-pin, 180 cm (USA)
ACS-PS-EU	Power cable: 3-pin, 180 cm (Euro)
ACS-PS-CN	Power cable: 3-pin, 180 cm (China)
ACS-A812	LCD VESA Table Stand

Datasheet

Type	Description	File Name	File Size
PDF	Datasheet of TPM-3217 (English)	DS_Arestech_TPM-3217.pdf	1.5 MB
PDF	Datasheet of TPM-3217 (Traditional Chinese)	DS_Arestech_TPM-3217_ch.pdf	1.4 MB
PDF	Datasheet of TPM-3217 (Simplified Chinese)	DS_Arestech_TPM-3217_cn.pdf	1.4 MB
